Ho do you make a diy corner cabinet with old plywood? I hope to explain that to you in this tutorial.
I started this project in June, but it’s been sitting in the garage waiting for me, while I have been waiting for cooler weather. It was somewhat cooler last week, so I pulled it out to work on it.

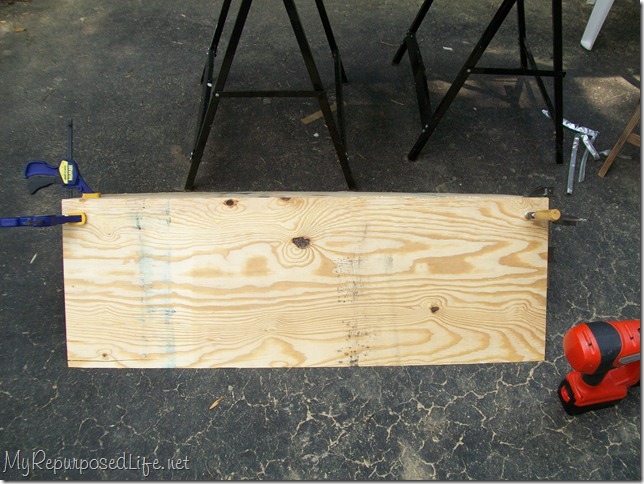

I started with a piece of cull bin ½ plywood. (.51)
Rip the plywood on the table saw
I ripped it to size and ran one side of each piece through the table saw with the blade set at a 45 degree angle. (the angled part is laying on the driveway)
Clamp using a 4x4 to keep corner square

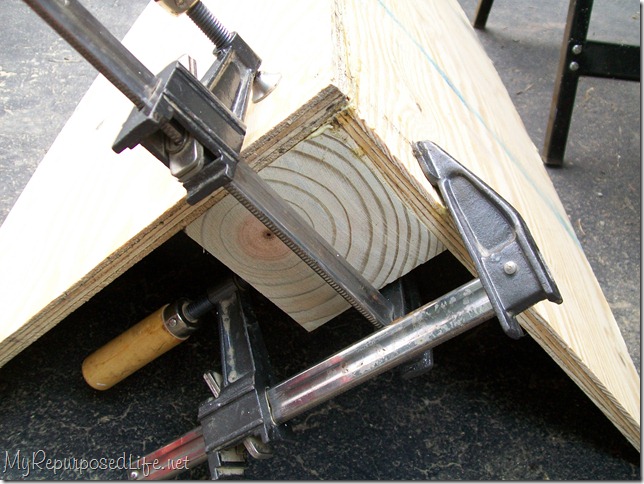

This was done the same way I do corner benches. One side is ½ inch shorter than the other side to allow for them to end up the same width. I have it glued and clamped on each end using a 4x4 to keep it “square”.

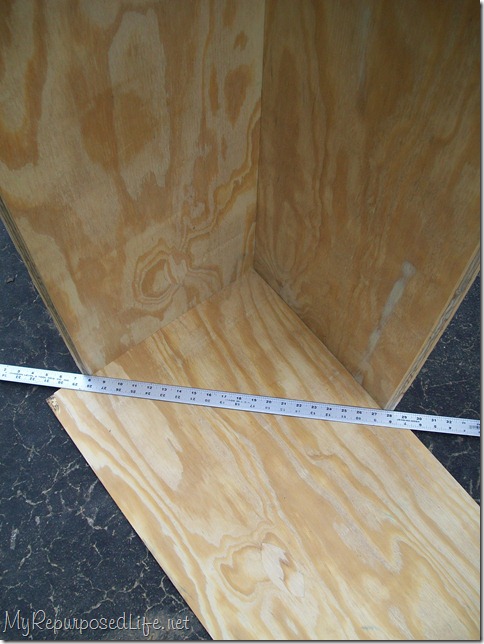

How to measure and mark the top and bottom of a diy corner cabinet
This is how I marked the pieces for the top and bottom. Can you see that the sides are cut on an angle?
Should I add a window as a door?
After the glue dried, I cut a triangle piece for the top and the bottom. Here I see that I somehow measured a little wrong on the “height” of the cabinet. It’s pretty complicated but it had something to do with crown molding, thinking I had to add some height. This is the point where I put it in the garage for almost 8 weeks.
I took this picture to show you how I kept the cabinet upright to work on it. I used scrap 4x4’s as a “chocks” to hold it in place.
Use extreme caution when trimming a window frame

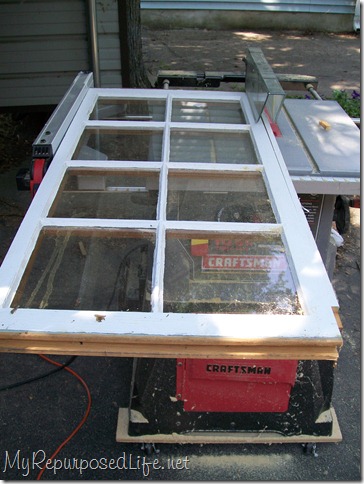

Windows are not even on all sides. Laying this way, one side is wider than the other. I put it on the table saw and VERY carefully trimmed it down.
Kreg Pocket Hole joinery for face frame

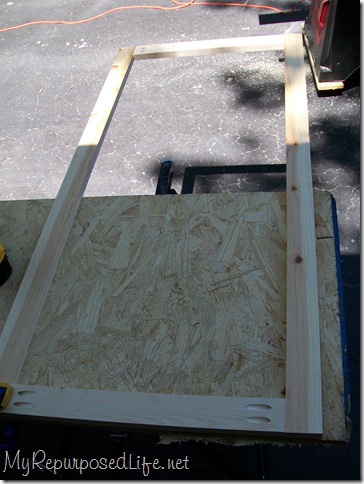

This is the front facing made by ripping 1x’s, and attaching them with my Kreg Jig® R3.
Attach front facing to corner cabinet
I attached the front facing with wood glue and my nail gun. Because the plywood was out of the cull bin, it was slightly bowed. I drew it up the best I could before I shot the nails in.
Using a rasp

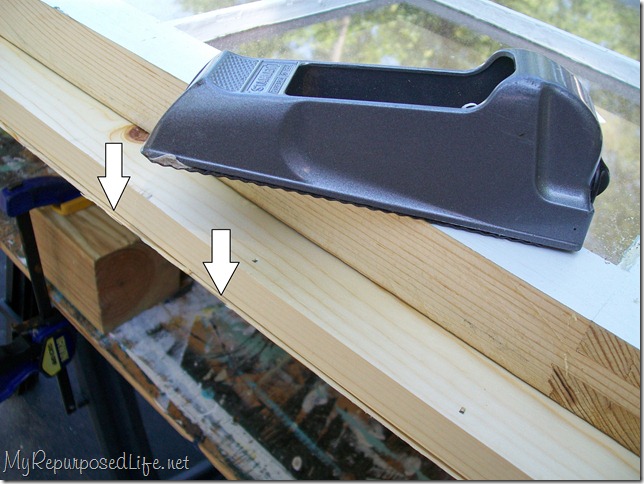

However, it would not set flush. I used the handy rasp to “shave” off the edges to make it perfectly smooth.
Assemble shelves
Here is the shelf with the front facing on, and the shelves in place.
Testing to see if the window is going to fit. After setting it on the driveway I decided to make it a floor cabinet. Originally I had planned for it to hang on the wall.
How to add legs to DIY furniture
I dug in my stash and found 3 chair leg pieces that I’ve had for a long time. I’m not sure why I cut the ends of the legs off. I quit digging when I found 3 of them. I’m assuming that there probably were 4 in my stash. I have found out that the best way to find the middle of a circle is with a washer. First I traced around the leg (the largest circle) then I laid a washer on there and and traced it’s center. In the smallest circle, I drilled a pilot hole.
Then I screwed the screw from the inside to the outside. Here, you see that it’s only part of the way through, but actually it was best to screw it all the way as far as it would go.
I used the washer to find the center of the leg. I clamped it and drilled a pilot hole. This was some kind of really hard wood!
Gorilla wood glue and screws
I glued it and carefully screwed the leg into the extended screw. Even though I had drilled a pilot hole, I did this very slowly. I did NOT want this screw to break off “in” the leg. I had to eventually use a screwdriver in the head of the screw to keep it from turning.
Voila! My cabinet now has legs!
But, the top needs something. It is very plain.Top it off!

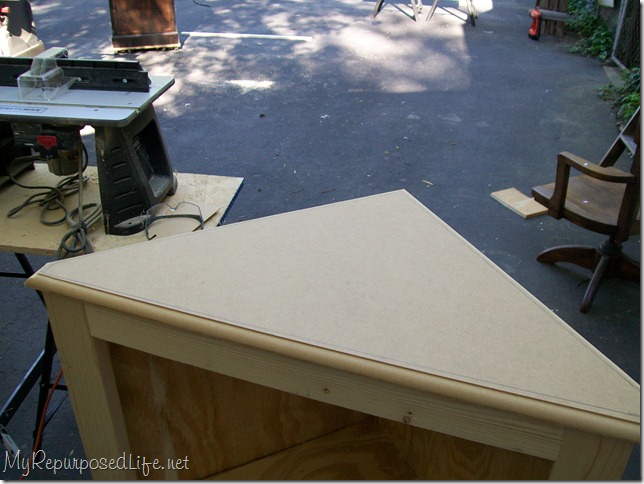

I found a piece of cull bin MDF and cut it to extend over all edges slightly. I used the router to trim out the edge all the way around. If only I could tell you which bit I used, but I have no idea. I spent way too much time on practice pieces to try to get the look I wanted. THIS is not what I was going for, but I got very frustrated, and just went with it.
Here she is! The DIY corner cabinet is ready to be sanded and painted with some primer.

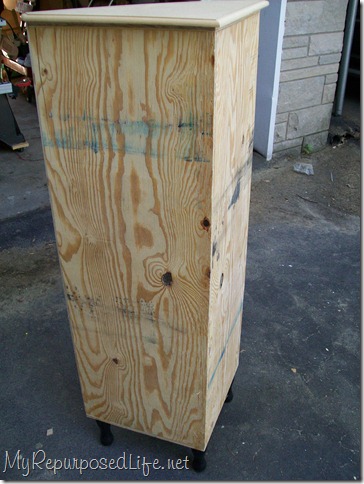

The back.
Time to paint the DIY corner cabinet
Of course it turned really hot again, so I brought the DIY corner cabinet in the house to paint.
This is where I’m at right now. I can’t decide what color to paint it. The window is white on one side and stained on the other side. I’m thinking it doesn’t even have to have a door, but that was my intention all along, so I guess I’ll go with that. I can always make another one later.
This piece will be up for sale, so it’s not a personal preference. It’s a matter of what will sell the fastest. Honestly, I wouldn’t mind keeping it, but I have NO empty corner to place it! Any thoughts? I am definitely color challenged! 🙂

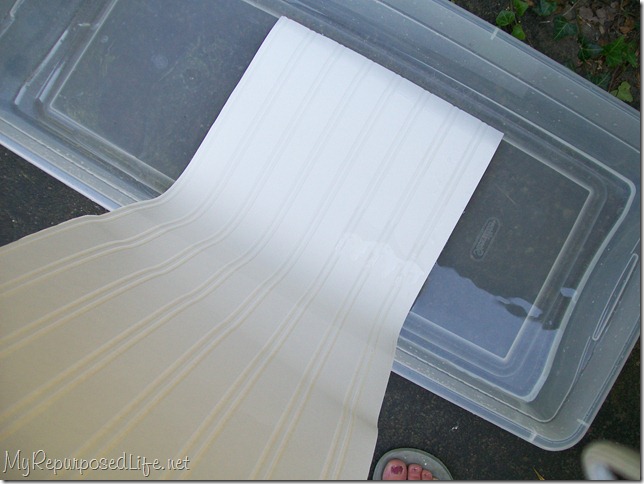

To hide bad wood-add bead board wallpaper
Edited to add updated pictures:

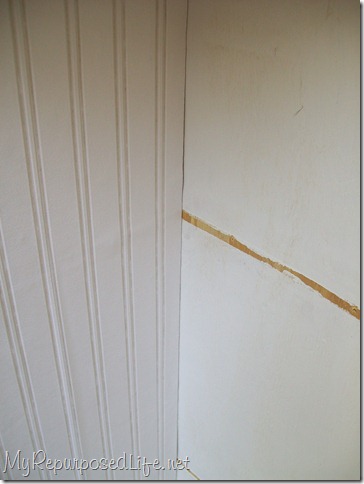

Adding bead board wallpaper to the back of the DIY corner cabinet really dressed it up a lot.
gail
total cost: $1.02
